LiFePO4 Battery 12.8V 150Ah (used to replace of the lead acid battery)

Typical Applications

⚫Solar/Wind Energy Storage

⚫ Back-up Power for UPS/ EPS

⚫ Telecommunication

⚫ Low Speed Electric Vehicles

⚫ Marine Boats

⚫ DC Power Supply

⚫ Auto Control System

⚫ Recreational Vehicles

⚫ Electric Toys

Electrical Characteristics

Nominal Voltage 12.8V

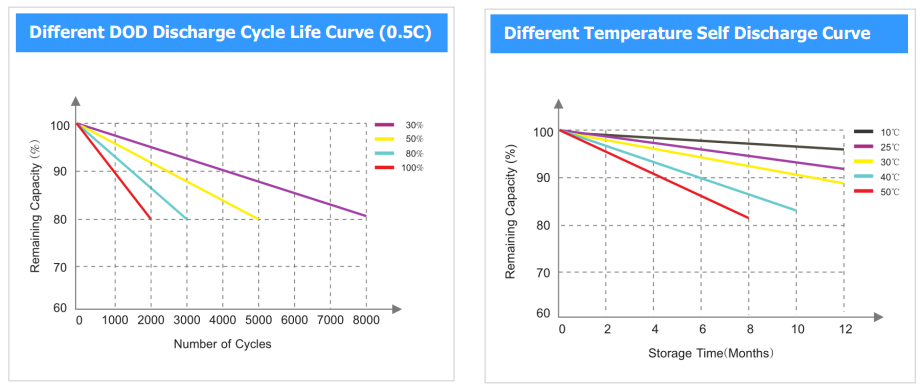

Cycle Life >2000 cycles @0.5C 100%DOD

Months Self Discharge <3%

Efficiency of Charge 100% @0.5C

Efficiency of Discharge 96~99% @0.5C

BMS Functions Over charge, over discharge, over current, short circuit and temperature protection

Maximum Modules in Series: 4 pcs

Environmental

Charge Temperature: 0 ℃ to 55 ℃ (32F to 131F) @60± 25% Relative Humidity

Discharge Temperature: -20 ℃ to 60 ℃ (-4F to 140F) @60 ±25% Relative Humidity

Storage Temperature: 0 ℃ to 45 ℃ (32F to 113F) @60± 25% Relative Humidity

IP Class: IP65

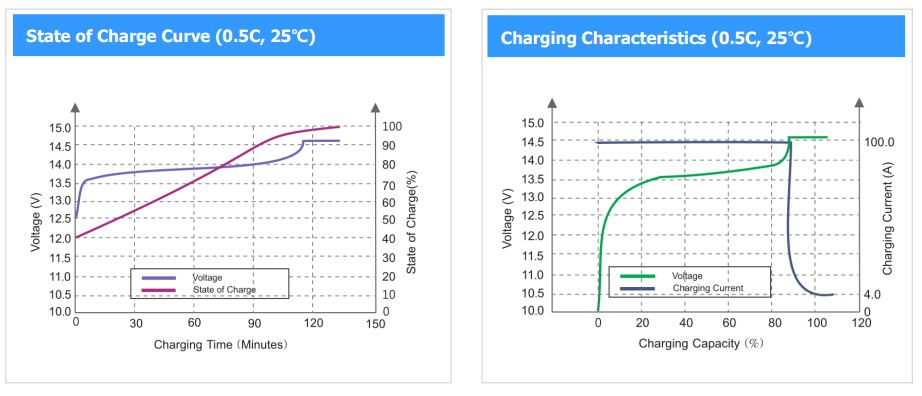

Standard Charge and Discharge

Charge Voltage: 14.2-14.6V

Charge Mode: 0.2C to 14.6V, then charge current to 0.02C (CC/CV)

Charge Current: 0.2C (Can be customized)

Max. Charge Current: 1C

Max Continuous Discharge Current: 1C (Can be customized)

Peak Discharge Current: 3C 1-3S

Discharge Cut-off Voltage:10V±0.5V

Plastic Case: ABS

Jiangsu Zhitai New Energy Technology Co., Ltd. was established in Aug. 2018. Currently, the company operates in two factory locations in Jiangsu Province,China.

It is a high-tech enterprise engaged in the research, development, production, sales, and service of lithium-ion batteries and complete ESS solutions.

The company boasts substantial technical capabilities and houses an independent research and development center. It focuses on the cutting-edge technology of lithium-ion batteries worldwide and collaborates with several famous universities such as BIT, HIT, among others, for industry-academia cooperation. Relying on four major innovative technology platforms - advanced materials, advanced batteries, advanced power sources, and advanced manufacturing - the company is committed to providing high-quality energy solutions to global customers.

As of now, the company has obtained more than 38 patents for invention, 19 patents for utility and 9 software copyright, participated in the formulation of one industry standard, and successively passed various product certifications such as CB, CE, TLC, as well as ISO9001 Quality Management System, ISO14001 Environmental Management System, ISO45001 Occupational Health and Safety Management System certifications.
