    Solar-Powered Microgrid With LFP Battery Storage For Rural Areas 30KW 40KWH

    Ask Lasest Price
    Brand Name : ZT-TEK
    Model Number : ZT-ESSPLUS-30-51100
    Certification : IEC 62619-2022, UN 38.3
    Payment Terms : L/C, T/T
    Supply Ability : 5GWh/Y
    Delivery Time : 10weeks
    • Product Details
    • Company Profile

    Solar-Powered Microgrid With LFP Battery Storage For Rural Areas 30KW 40KWH

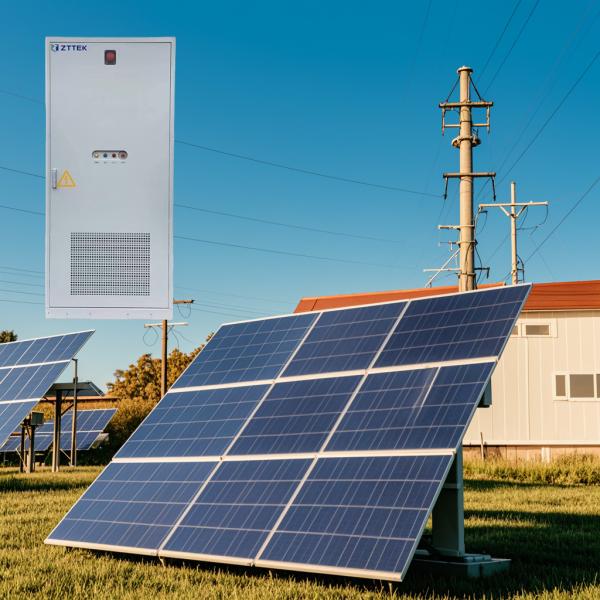

    ZT-TEK Solar-Powered Microgrid with LFP Battery Storage for Rural Areas

    For small size workshop & commercial scenarios


    Output: AC 400V, 3Phase or AC 220V, 1Phase

    Output capacity: 30kW

    with 40.96kwh Lithium-ion battery energy storage system (can be expanded)

    Microgrids using solar energy and LFP battery storage are an effective solution for rural or remote areas. These systems store solar power in LFP batteries for use during the night or cloudy days. With a longer lifespan than traditional lead-acid batteries, LFP batteries reduce maintenance costs and provide reliable performance over many years. This energy solution offers both sustainability and reliability, minimizing energy disruptions in off-grid communities.

    Example Use Cases:
    Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.
    Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.
    Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

    Data sheet

    ModelZT-ESSPLUS-30-51100
    System parameterOutput VoltageAC, 3Phase,400/230V
    AC, 1Phase,220~230V
    Output frequency50Hz/60Hz
    Rated output power30kW
    Max output power33kW
    Overload capacity45kW,10S
    Rated output Current (3P, 1P)45.5A/43.5A
    Max output Current (3P,1P)50A/47.9A
    CommunicationWIFI

    PV sideConfig.75pcs* 600wp
    Input Power W45000
    Input DC current13.58A (6channels)
    Input DC voltage574.47v (3channels)& 530.28V (3channels)
    MPPT6

    Battery sideTypeLFP
    Voltage51.2V*4*2strings = 409.6V
    Capacity5.12kWh *8 =40.96kWh
    Charging current50A
    Discharging current27.5A
    BMSIncluded
    Communication between BMS & PCSRS485

    Grid / GeneratorsInput voltageAC, 3Phase,400/230V
    AC, 1Phase,220~230V
    Rated input Current (3P, 1P)45.5A/43.5A
    Max input Current (3P,1P)50A/47.9A
    Frequency50Hz/60Hz
    PowerNo less than 30kW

    EPS functionYes
    ProtectionsPV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
    Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
    Output Shorted Protection
